General HydroStatics
Ship Stability Software |
|
Command of the Week
(New or interesting aspects of GHS that you may not know about) |
|
DB LoadEdit
(Requires GHS version 17.00 or later including Load Editor (LEW)) |
|
(Use the command DB Update to get the latest version
of the Data Base software.)

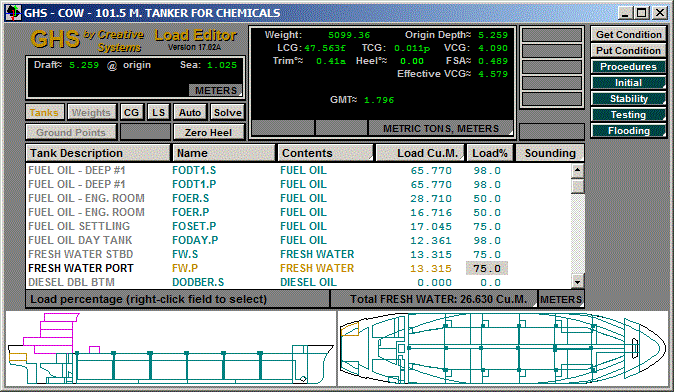

DB LoadEdit turns the Load Editor into a platform from which you can easily manage conditions and run calculations. Notice the column of buttons on the right. |
|

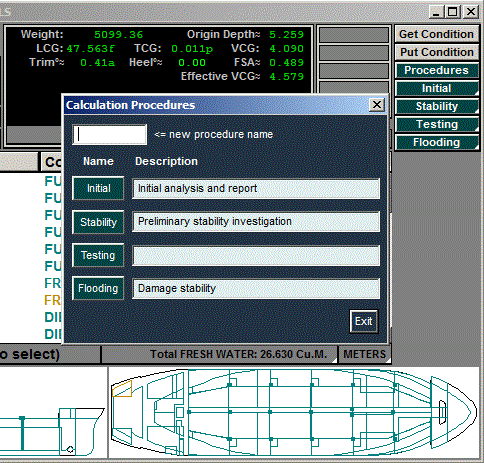

| The Procedures button gets you into the Procs dialog from which you make your calculation procedures. Below it is a button named for each of the procedures you have created. |
|

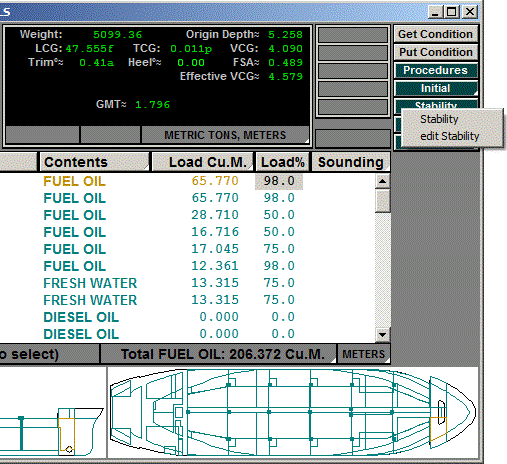

| These individual procedure buttons are two-leveled: the right click switches between executing the procedure and editing the procedure. |
|

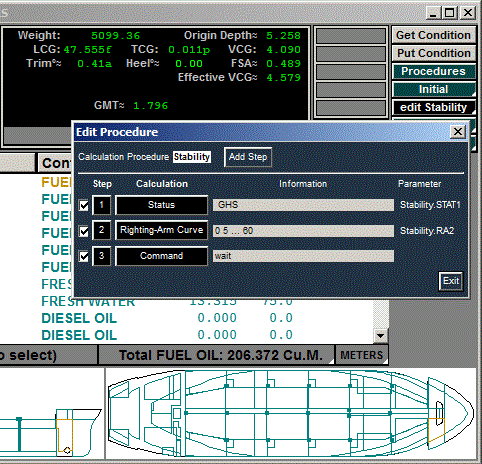

| In this example, someone has made a simple procedure called "Stability." |
|
| You can do anything with a procedure. The steps in a procedure can be commands, macro executions, or run-file runs. Additionally, help with arranging parameters on complex GHS commands is offered in the procedure-step menu." See this COW on procedures. |
|
