ME PLOTSTART /PROFILE & /PLAN
(Requires GHS version 16.50A or later) |
|
Want to add your vessel profile or plan behind your report plots? Yeah, you can do that... just include /PROFILE or /PLAN on your report command line.

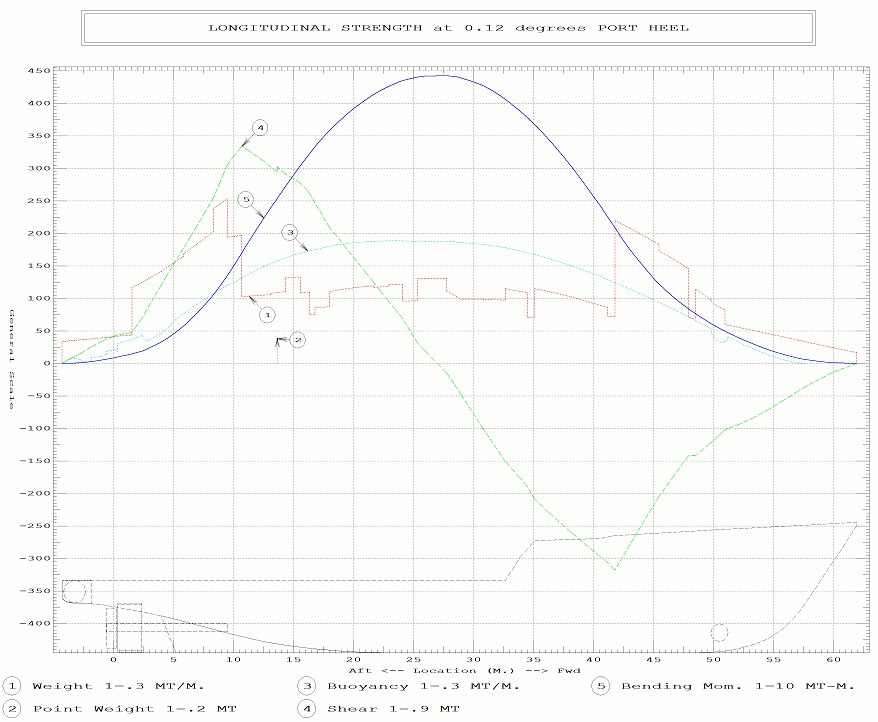

That works for ANY report command whose horizontal axis uses vessel longitudinal coordinates. So of course it works with LS /PROFILE: |
|

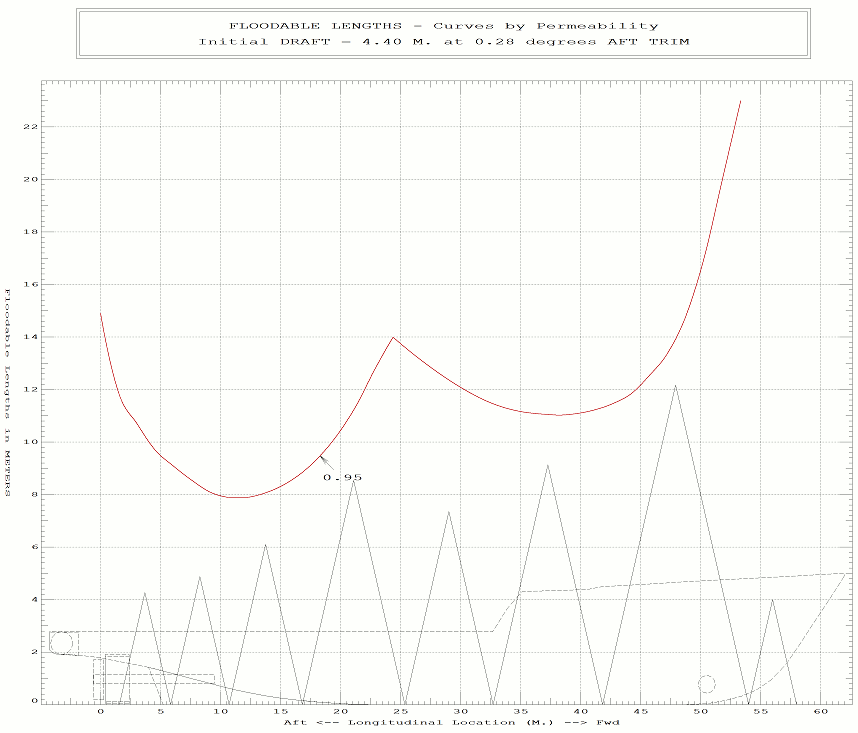

| ...and FL /PROFILE: |
|

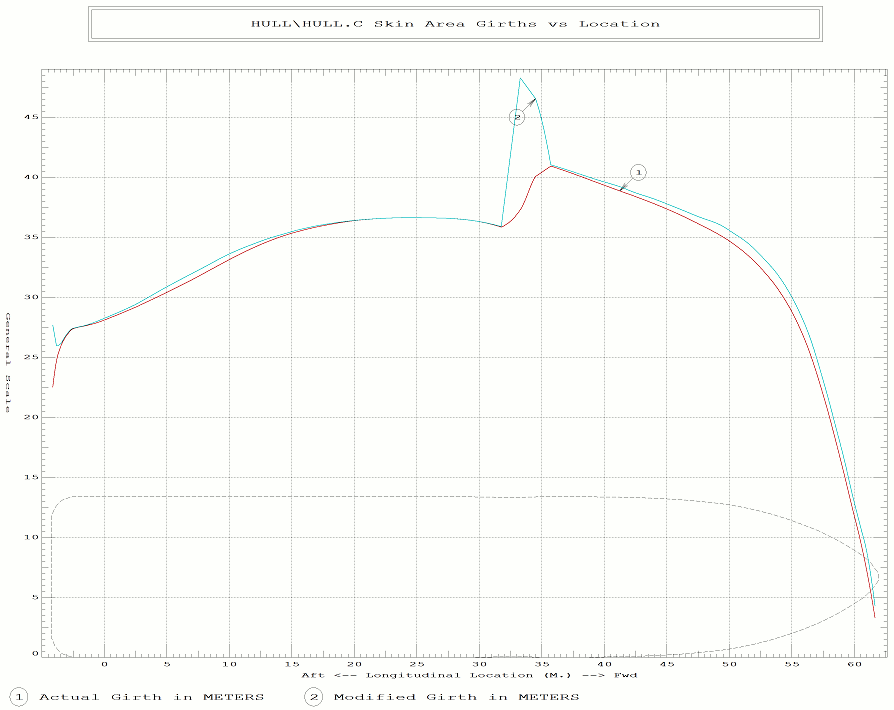

| ... and COMP /SKIN /PLAN: |
|
|
...and so on.

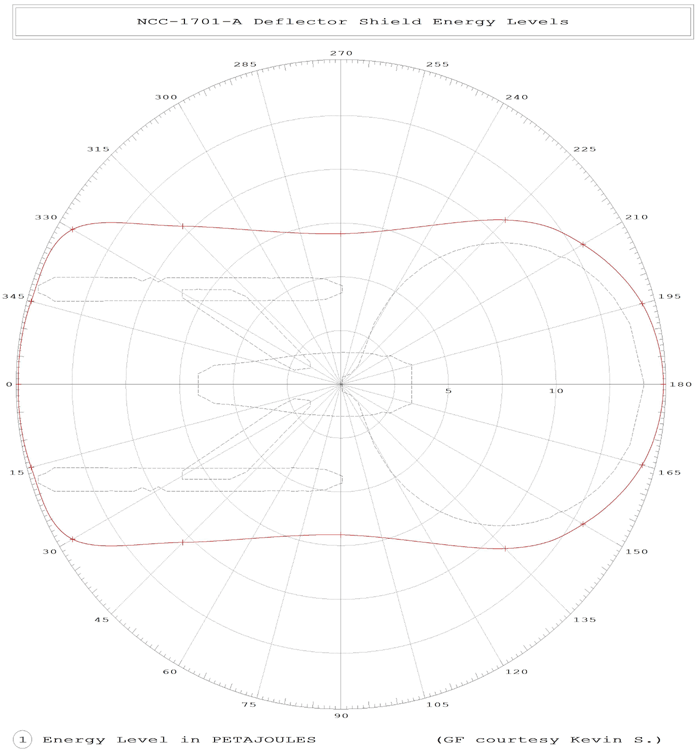

Starting in version 16.50A, you can even include /PROFILE or /PLAN with any custom plot you cook up using the MESSAGE PLOTSTART command. For /POLAR plots, including a profile view doesn't make much sense but /PLAN is permitted, showing the vessel plan sized to fit the outer polar plot circle and its aft end directed toward angle 0: |
|
|
