Command of the Week
(New or interesting aspects of GHS that you may not know about)

db.ProcGetExpand
(Requires GHS version 17.00 or later)

(Use the command DB Update to get the latest version of the Data Base software.)

This is another "expand" macro provided by the Data Base. It is entirely unnecessary if you use the high-level dialogs like CalcPlan and the DB Executive wizard. But some users are never happy until they build their own interfaces.

We already are familiar with DB Procs which allows you to define and edit Procedures. Also we know that DB ExeProc "procname" executes the given procedure or by default allows you to pick a procedure and execute it. But how does one pick a procedure and capture its name so it can be executed repeatedly without picking it again or remembering it some other way?

That's what db.ProcGetExpand does for you, and here is a minimal example:

template t
 expand db.ProcGetExpand "procname"
/
Here is what the template's rendered dialog looks like after someone has selected their "Stability" procedure:


The procedure name you pick shows up in the dialog and also in the variable you specified, in this case "procname".

So now you can make this template useful by adding a button to execute the procedure you have selected. Then wrap it in a macro, and you have a nice little DB tool of your own making.

macro Procland
 template t "Procland" /bg:0
  expand db.ProcGetExpand "procname"
  break
  "Execute" .t1
  exit
 //
 macro t1
  DB ExeProc "{procname}"
 //
 variable (str) procname
 DB Start
 .t
/
.Procland


Of course you wouldn't stop there. You would want to include a button to create and edit procedures, which makes it a veritable interface from which you can do anything a procedure can do, which is everything.

macro Procland
 template t "Procland" /bg:0 /nokey
  "Procs" .t2
  break
  expand db.ProcGetExpand "procname"
  break
  "Execute" .t1
  exit
 //
 macro t1
  DB ExeProc "{procname}"
 //
 macro t2
  DB Procs
 //
 variable (str) procname
 DB Start
 .t
/
.Procland


"Well, that's nice," someone says. "But I want the Procs list to show all the time for editing, etc."

In the same dialog?

"Yes, in the same dialog."

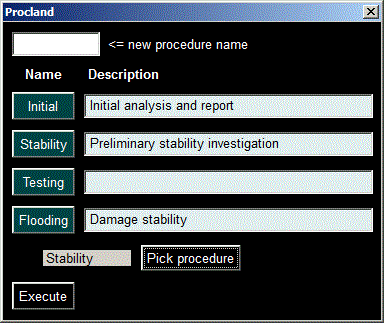

Okay, we have something for that too. Try this:

macro Procland
 template t "Procland" /bg:0 /nokey
  expand db.ProcsExpand
  break
  expand db.ProcGetExpand "procname"
  break
  "Execute" .t1
  exit
 //
 macro t1
  DB ExeProc "{procname}"
 //
 macro t2
  DB Procs
 //
variable (str) procname
DB Start
.t
/
.Procland


"That looks confusing to me," says someone else. "It doesn't clearly show the relationship of the Procs list to the buttons below it. Could we show one at a time?"

In the same dialog?

"Yes, in the same dialog."

Here's a little trick you can use to turn the expand lines in your template on and off. Since a repetition factor is available, you can put a number in parentheses after the expand name. Furthermore if it's a variable, you can switch its value between zero and one.

macro Procland
 template t "Procland" /bg:0 /nokey
  "{hide}Procs" /bg:14 .t4 /persist:refresh
  expand db.ProcsExpand (i)
  break line
  expand db.ProcGetExpand (j) "procname"
  break
  expand t3 (j)
  exit
 //
 macro t1
  DB ExeProc "{procname}"
 //
 macro t2
  DB Procs
 //
 macro t3
  "Execute" /bg:14 .t1
 //
 macro t4
  j:=i
  i:=1-i
  if i<>0 then hide:="Hide " else hide:=""
 //
 variable (str) procname, hide
 variable i=0, j=1
 DB Start
 .t
/
.Procland
(The alternate expression syntax which requires GHS version 17.36 or later is used in this example.)

Initially it looks like this:

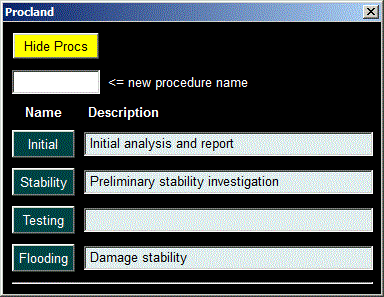

Click the Procs button and you get this:


"How is that any different from the first one?" says the first guy, "-- the one where you simply used a button for DB Procs?"

There isn't any difference, really. Unless someone looks at your code and sees how clever you were. That's the essential difference, and it must be worth something!
