General HydroStatics
Ship Stability Software |
|
Command of the Week
(New or interesting aspects of GHS that you may not know about) |
|
DB Floods
(Requires GHS version 17.00 or later) |
|
(Use the command DB Update to get the latest version
of the Data Base software.)

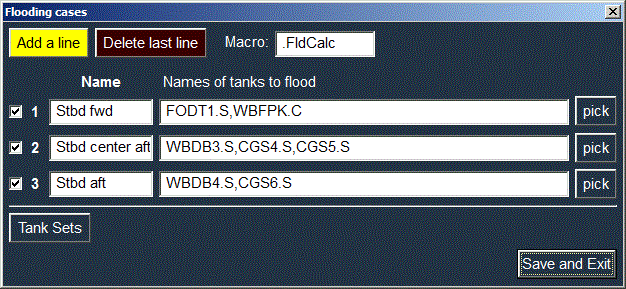

DB Floods is the working dialog that parallels DB PutFlood. It facilitates creating and editing lists of tanks to be flooded. DB PutFlood makes a flooding case either from the current tank status or from tank names given in a parameter, as when tank selections are specified in a run file. DB Floods provides for building flood cases interactively. The dialog looks like this: |
|
|
If a macro name is provided in the DB Floods dialog, it serves as the default
macro name in GetFlood.
The check boxes here are the same as those that appear when GetFlood is given without parameters: cases not checked are ignored by DB GetFlood * when it runs through the list of flooding cases. |
|
