DRAFTS (review)
|
| The captain of a chemical tanker wanted to find out how much the hull was sagging with the current load, so he sent for drafts at the perpendicular locations, and what he got back he plugged into the GHS DRAFT command: |
read TANKER.GF
LBP 0, 95f
variable L
set L={FP} plus {AP} div 2
LBP {FP}, {L}, {AP}
draft 4.04 @ FP, 4.95 @ MP, 4.34 @ AP
|

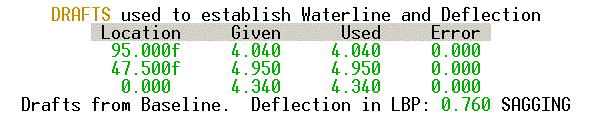

| And the program responded with this output: |
|
|
The captain knew this couldn't be right. That much deflection was impossible.
So he called for drafts every ten meters.

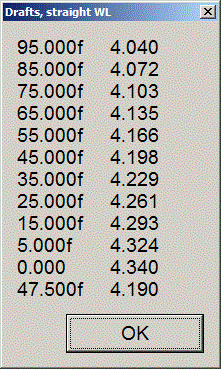

While he was waiting, he had the program spit out the drafts he would expect to see with zero deflection, assuming the FP and AP values were correct (he had more confidence in them since the crew were used to getting draft readings at the forward and aft perpendiculars where they had tables giving the conversion of freeboards to drafts). Just for fun, he displayed the drafts in a little dialog box: |
|
| By the way, here is what he did to make the template for the dialog: |
draft 4.04 @ FP, 4.34 @ AP
macro drloc
set DRLOC8=%1
set L=%1
"{L:3fa}" | "{DRVALU:3}"
/
template drafts "Drafts, straight WL"
expand drloc (10,10) {FP}
expand drloc {AP}
expand drloc {MP}
/
.drafts
|
| Finally, he got the list of drafts at ten-meter intervals, and he plugged them into the DRAFT command: |
draft 4.04 @ FP, 4.06 @ 85f, 4.15 @ 75f, 4.14 @ 65f, 4.66 @ 55f, 4.20 @ MP, 4.21 @ 35f, 4.23 @ 25f, 4.28 @ 15f, 4.34 @ AP |

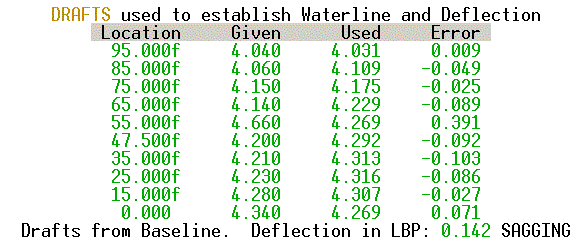

| with the following result: |
|

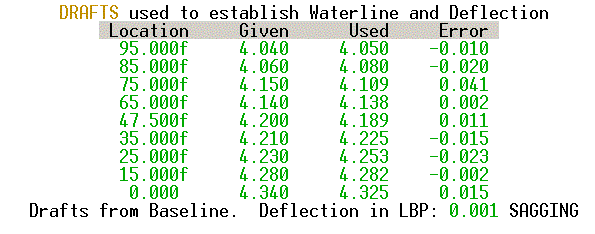

| Right away, Capt. Chemical noticed that the draft at 55m fwd was out of line. So he deleted it and reissued the DRAFT command without it, and he got the following surprise: |
|
| This was entirely unexpected—the first time in his entire career that he found the result of a deflection calculation to come out so small. Obviously, it was accidental since it was impossible to resolve drafts within even a centimeter. Added to that, he knew the ship had a permanent sag. No one would ever believe these results. What was he to do? We felt sorry for him, but we couldn't help him. |
|
