Command of the Week
(New or interesting aspects of GHS that you may not know about) |
|
RAH /GRAPH:FIT (review)
(Requires GHS version 17.42 or later) |
|
RAH /GRAPH: FIT places the righting-arm graphs on the current page, automatically scaling them smaller as necessary.

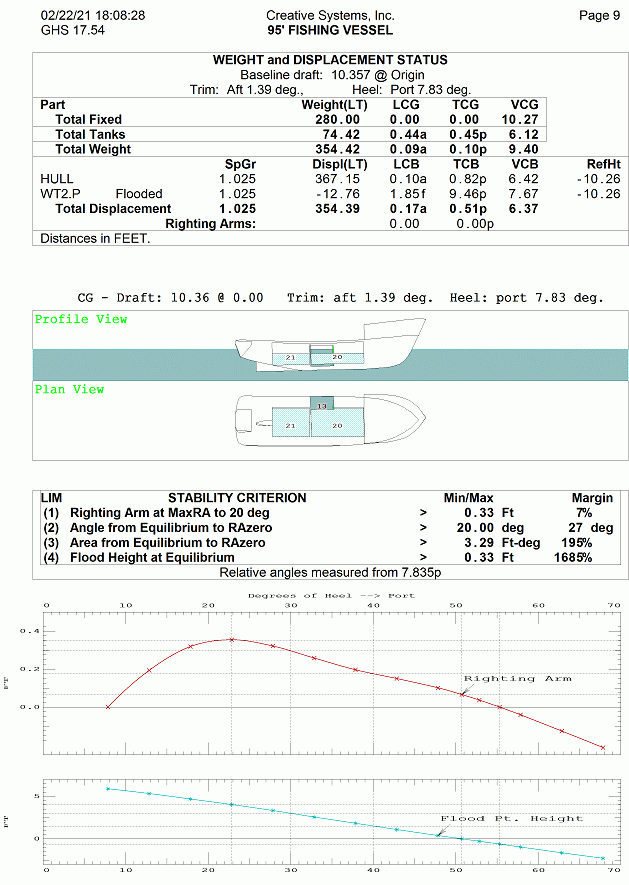

RAH /GRAPH:FIT can be combined with /NOTAB to omit the table but still show the limit evaluation and graphs on the same page. Here is an interesting combination: |
|
status weight:total displacement
di (*) status profile, plan /page%:20 ra /lim /notab /graph:fit,noarea |
|
|
|
| For more typical uses, add /GRAPH:FIT,NOAREA,NOCRT to your RAH commands to shorten reports by fitting the righting arm plot below the table whenever there is space. |
|
|
