CRANE.WIZCO (review)
(Requires GHS with Crane Module) |
|
The Crane Module and specifically the CRANE.WIZCO
wizard makes the task of detailed crane modeling relatively easy.
It accommodates pedestal-mounted cranes as well as cranes based on the deck,
providing several ways of distributing weights for shear and bending calculations.
Knuckle booms as well as fixed-angle jibs are handled.
Multiple hooks are provided for.

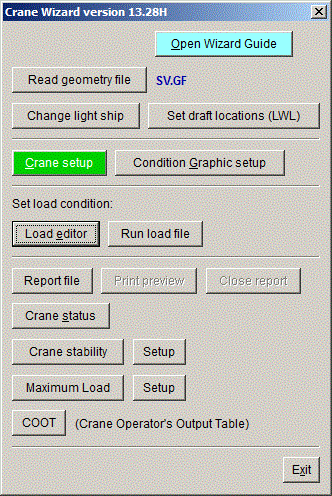

A nice feature of the Crane Module is the manipulation of graphics to give visual verification of load locations. Here's the opening dialog of CRANE.WIZCO: |
|

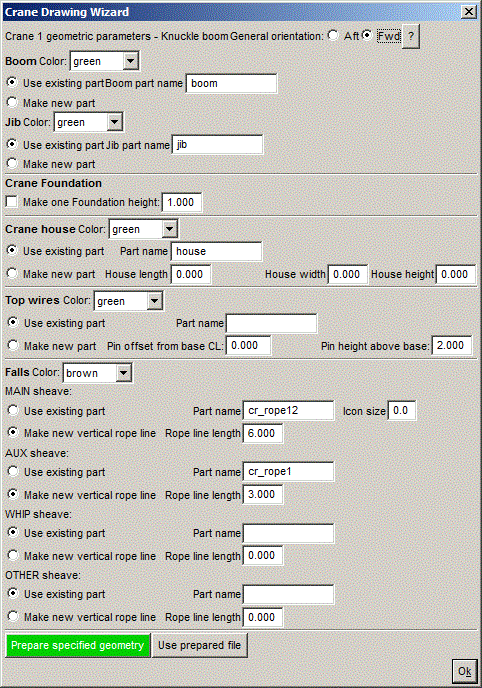

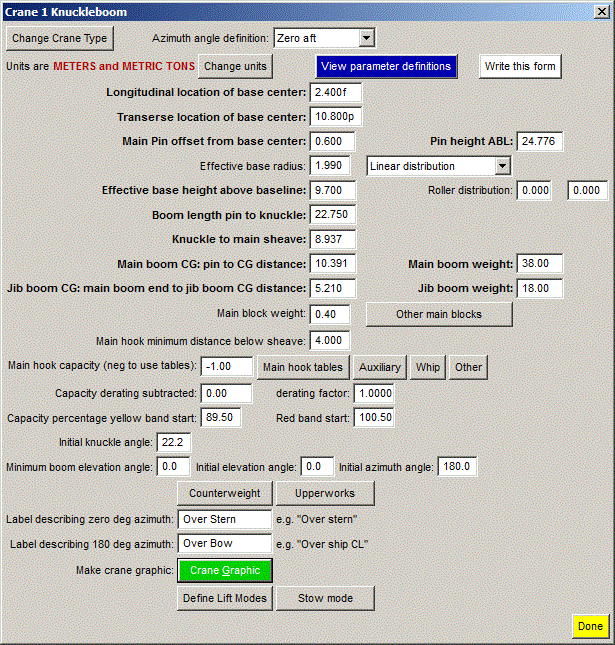

| The green button brings up the main setup dialog for defining all the relevant details of geometry, weights, and capacity tables: |
|

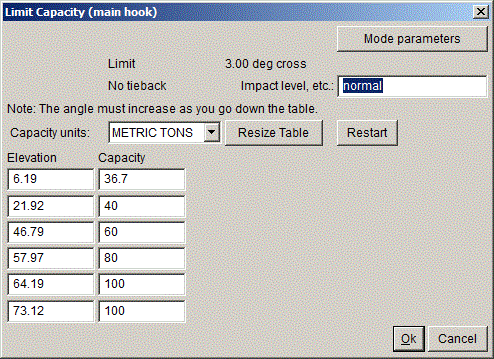

| A separate capacity table for each hook is provided for: |
|

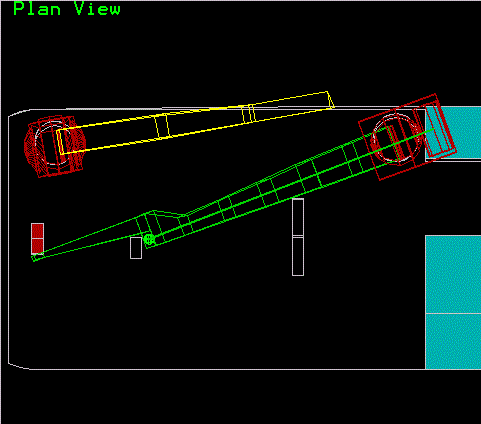

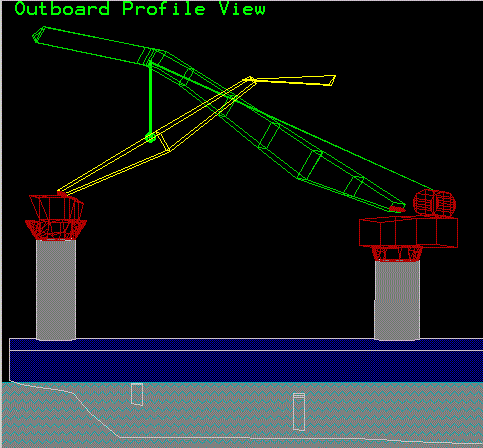

| The Crane Module can create a graphical representation of the boom and quite a few other details as well: |
|
|
|

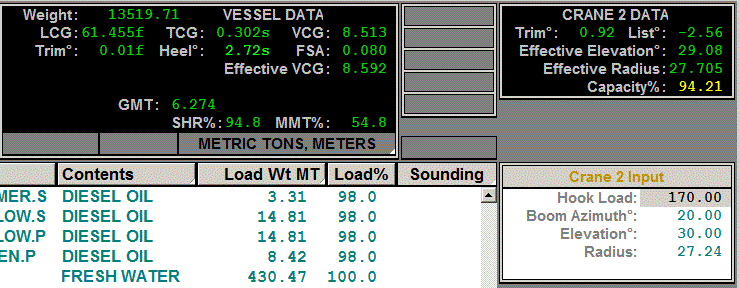

| Useful output at a particular condition is presented in the Load Editor: |
|

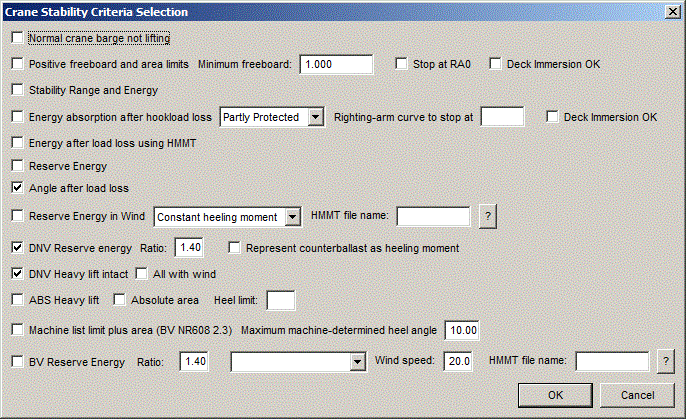

| Several stability criteria are available: |
|

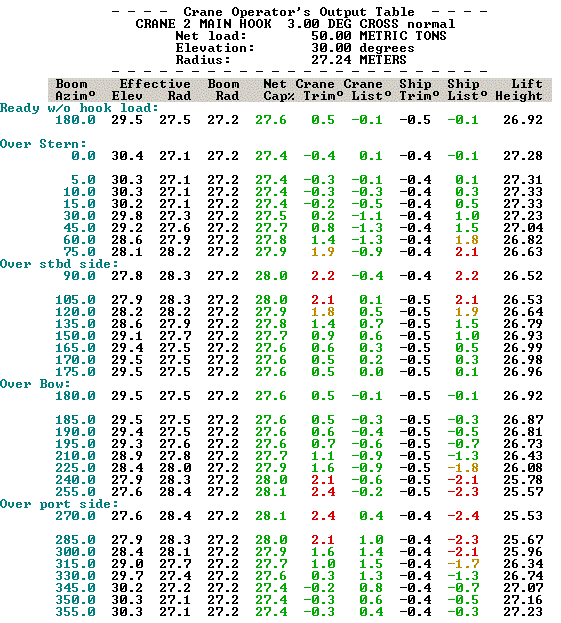

| Also available is a table showing results over a range of azimuth angles: |
|

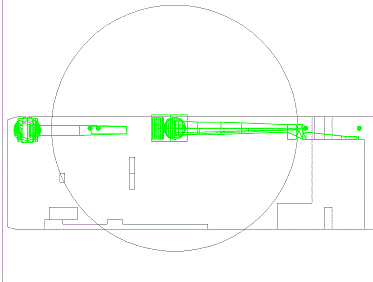

| For what it's worth, the Crane Module will draw the locus of the hook at a given boom elevation angle: |
|

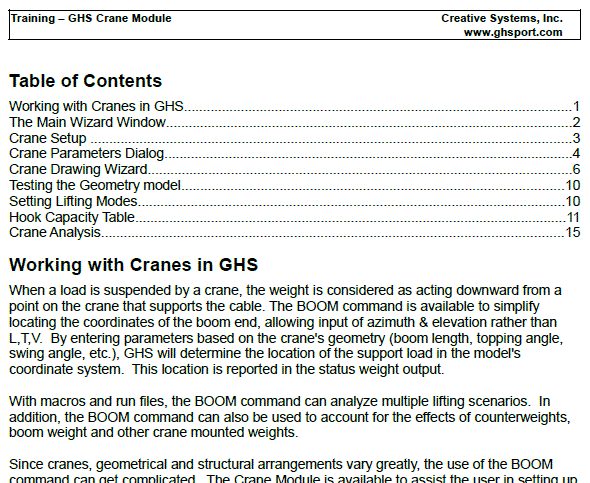

| It's fun to play with the dialogs and try things out. Just in case documentation is needed, the Crane Module manual is available. |
|
|
