General HydroStatics
Ship Stability Software |
Command of the Week
(New or interesting aspects of GHS that you may not know about) |
Displ_Trim_Corr Wizard
|
Among the Wizards that come with GHS is this tool for
displaying a table of displacement changes for a range of trims.

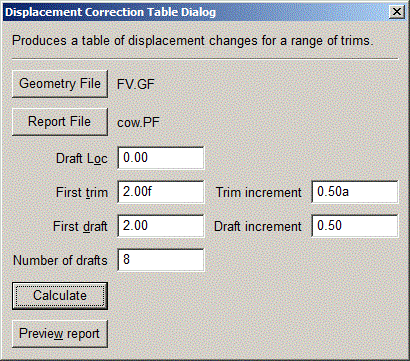

Find Displ_Trim_Corr in your Wizard pull-down menu within the Tables category. Use is straightforward, and the wizard's dialog is self-explanatory. |

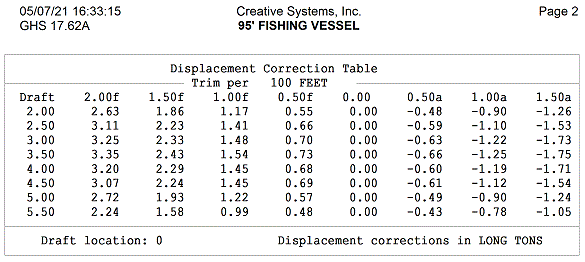

You may discover that the table shown above is a slight improvement
over the one you get. If your Maintenance and Support subscription
is current, contact us for a free update.
Unlike the HOOKCIRC wizard featured in last week's COW, this one does not provide a means of producing the table from Run File commands. If you would like to have that capability, let us know, and we will provide it -- free of charge, of course. |
