DISPLAY WEIGHT ITEMS?


In GHS, geometric descriptions and mass descriptions are handled separately. The DISPLAY command displays items that are defined geometrically, but it cannot display weight items (such as are defined by the ADD command) because geometric envelopes are directly tied to weight items.

In the Load Editor environment, a weight item's location is indicated as a point in the "cartoon" outline of the vessel at the bottom of the screen, but there is no geometrically precise way to show a weight item's location unless geometry is associated with it.

For a quick look at weight-item locations, it's not difficult to make little spheres to mark centers of gravity and then show them with the DISPLAY command.

Here's a macro for your toolbox:

MACRO DISPLAY_WTS
 IF FEXIST TEMP.RFX THEN ERASE TEMP.RFX
 VARIABLE (LE) L,T,V,D
 VARIABLE (WE) W
 UNIT SAVE
 UNIT MT
 MACRO T
  SET I={I} PLUS 1
 ADD ({I}) *,W,L,T,V /ACCESS
  IF "{W}"="" THEN EXIT
  IF {W}=0 THEN EXIT T
  %1
  SET D={W} TIMES 6 DIV 3.1416 POW 0.333
  WRITE (LINE) TEMP.RFX
  \CREATE POINT{I}.S
  \SPH {L},{T},{V},{D}
  \INB -99
  \/
  \LOAD (POINT{I}.S)=1
  EXIT T
//
VARIABLE I=1
.T
WRITE (LINE) TEMP.RFX
\PART=*
\DISPLAY STATUS
\QUIT PM
ENTER PMX TEMP.RFX /DIRECT
ERASE TEMP.RFX
UNIT REST
/
Each sphere is sized to make its weight at 1.0 density equal the weight of the item it represents.

We tested it with our tanker model:

READ TANKER.GF
UNITS = MT
ADD "Crew and Effects " 4 1.0F 0 11.5
ADD "Engine Room Spares" 15 8.0 0 2.0
ADD "Bosun's Stores " 8 91.3F 0 10.5
ADD "Hoses and Fittings" 6 25.9F 0 9.9
.DISPLAY_WTS

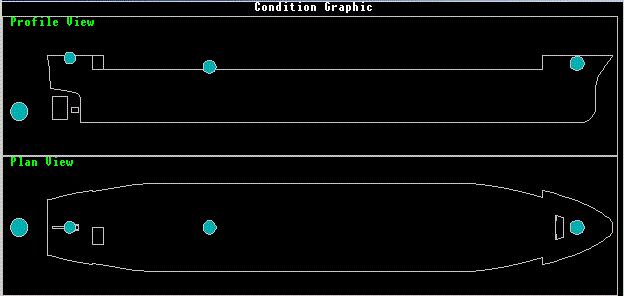

It looks like the engine room spares are being towed behind. Probably the 8.0 longitudinal location should be 8.0F.
