Command of the Week
(New or interesting aspects of GHS that you may not know about)

A Gadget


Someone had the idea that it would be nice to have a little "gadget" that pops up and shows the locations of the tank ends for the currently selected tank in Load Editor.

It takes only a few lines of GHS code to make one:

macro tk_ends
tank {LEtank}
template tk_endsT
"Aft: {TENDA}"
"Fwd: {TENDF}"
//
.tk_endsT
tank off
/

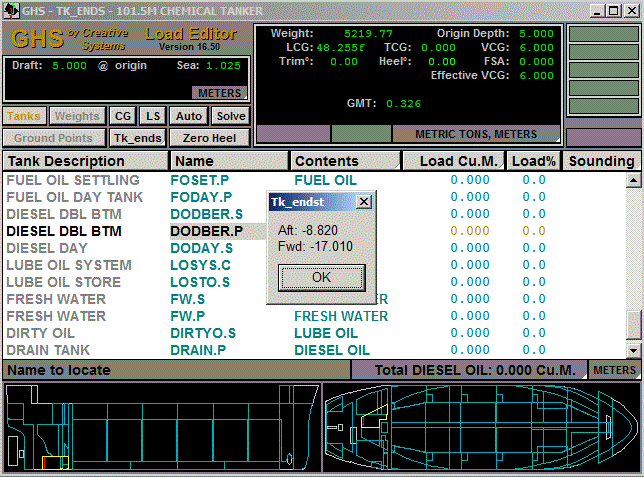

And here is how it looks:

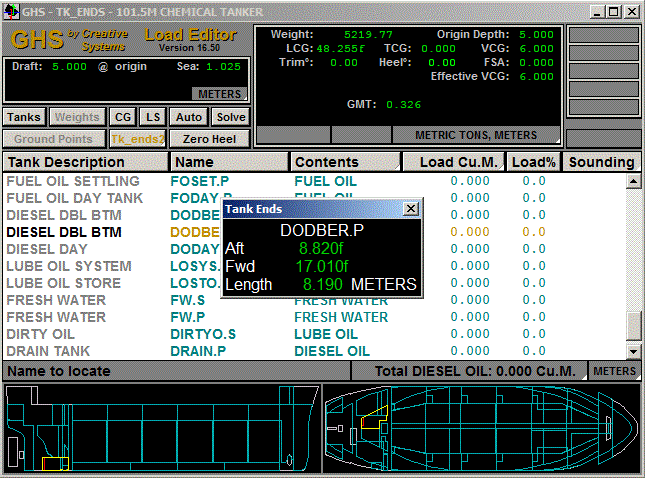

But we can make it look better than that by using some of the color and formatting options. Here is one possibility:


How did we do it? Nothing special. Check the TEMPLATE command documentation if you're curious, and you will come up with one better than that.
