Command of the Week
(New or interesting aspects of GHS that you may not know about)

RUN GREATO.WIZ




What do great-circle distances have to do with ship stability? Nothing as far as we know. But the Part Maker commands that produce this wizard demonstrate advanced template techniques. Also the trigonometry function ATAN2 is featured.

ATAN2 was added recently to complete Part Maker's offerings of trig functions. This form of the arctangent function takes both x and y arguments instead of y/x. ATAN2(y,x) in Part Maker follows most programming languages: the order of the parameters is y first then x. Some spreadsheets (notably Excel) reverse the order.

The GHS main program also provides trig functions in its SET command, which can be used to precalculate things for Part Maker. But as explained in last week's COW, the PMX version of Part Maker is fully capable of performing arithmetic operations independently of the main program.

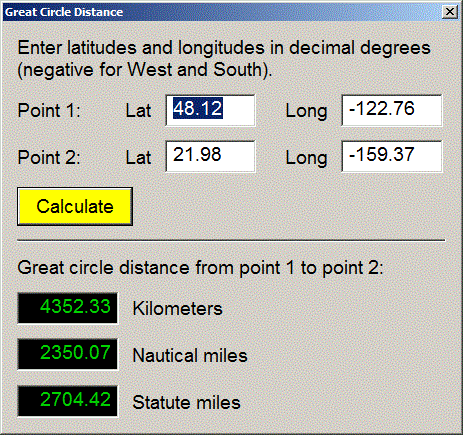

GREATO.WIZ did not exist until now. It is truly a Command of the Week! If you want to include it in your GHS system, copy the code below to a text file, name the file GREATO.WIZ, and move it into your GHS program folder. Then RUN GREATO.WIZ.


 enter pmx /direct
 real latd1:=48.117, lond1:=-122.76
 real latd2:=21.981, lond2:=-159.372
 real dnm, dkm, dsm
 real pi:=3.14159
 real rad:= pi/180
 real R:=6371 `km
 macro LL
  "Point %1:" | "Lat" latd%1 /dec:2 /width:7 | "Long" lond%1 /dec:2 /width:8
 /
 macro Dist
  d%1 /dec:2 /read /right /width:8 /color:2 /bg:0 | "%2"
 /
 template greato "Great Circle Distance" /nokey
  "Enter latitudes and longitudes in decimal degrees"
  "(negative for West and South)."
  expand LL (2,1) 1
  break
  "Calculate" .calc /bg:14
  break line
  "Great circle distance from point 1 to point 2:"
  expand Dist "km", "Kilometers"
  expand Dist "nm", "Nautical miles"
  expand Dist "sm", "Statute miles"
  exit
 /
 macro calc
  `ref: http://www.movable-type.co.uk/scripts/latlong.html
  real dlat:=(latd2-latd1)*rad
  real dlon:=(lond2-lond1)*rad
  real t:=SIN(dlat/2)
  real u:=SIN(dlon/2)
  real a:=t*t+COS(latd1*rad)*COS(latd2*rad)*u*u
  dkm:=2*R*ATAN2(SQRT(a),SQRT(1-a))
  dnm:=dkm/1.852
  dsm:=dkm/1.60934
 /
 .greato
 quit pm
 quit
