General HydroStatics
Ship Stability Software |
Command of the Week
(New or interesting aspects of GHS that you may not know about) |
HOOKCIRC.WIZCO
|

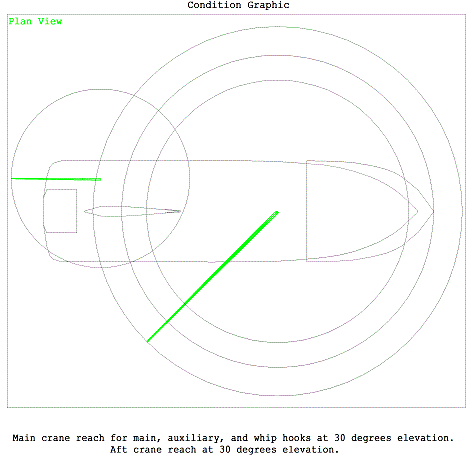

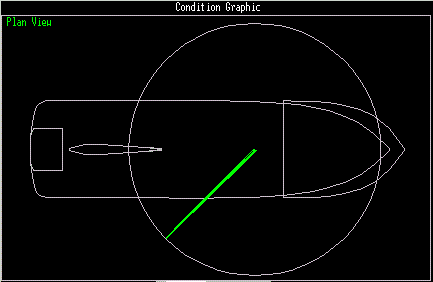

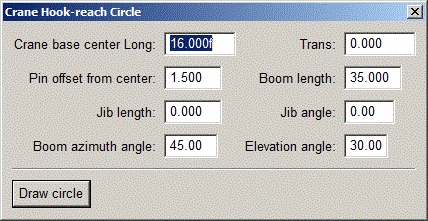

The new wizard HOOKCIRC.WIZCO makes it easy to get a picture of the reach of a particular crane hook: |
If a report file is open, the graphic would appear in the report instead of on the screen.

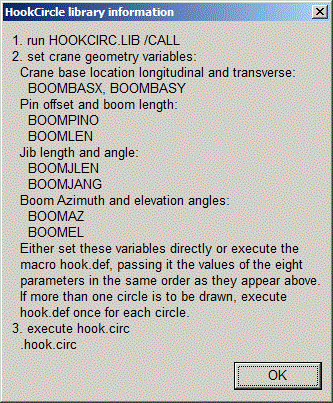

For use in a run file, the HOOKCIRC.LIB macro library is available. This avoids having to interact with the wizard, and it gives you the ability to show more than one circle. |
There is no limit to the number of circles that can be shown at once. And since the crane base location can be anywhere, the crane could be on a wharf next to the boat. |
