Command of the Week
(New or interesting aspects of GHS that you may not know about) |
|
Add_Weight3
|

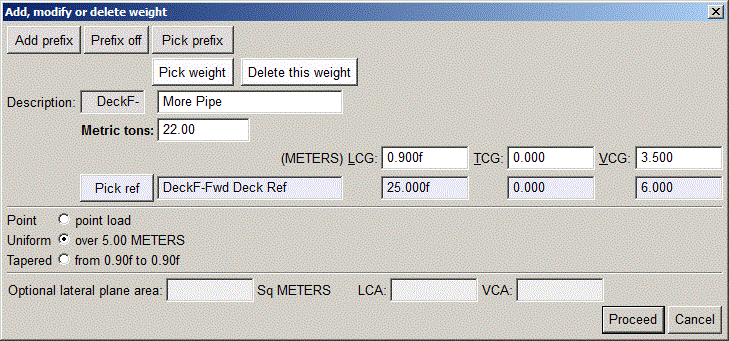

| Announcing the new Add_Weight3 wizard: |
|

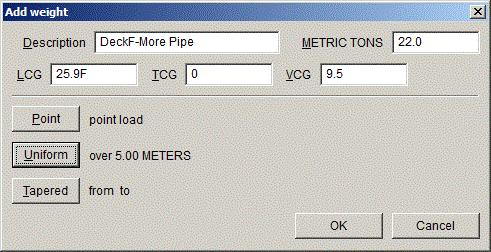

| For comparison, here is the original Add_Weight.wizco: |
|
|
Note that Add_Weight3 is three times better than the old one.
One of the new features is the Reference location. Reference locations are taken from zero-weight items, which can be made at any time, causing them to appear in the drop-down list of Reference locations. Also frames show up in the list of reference locations (in GHS version is 15.80 or later). |
|

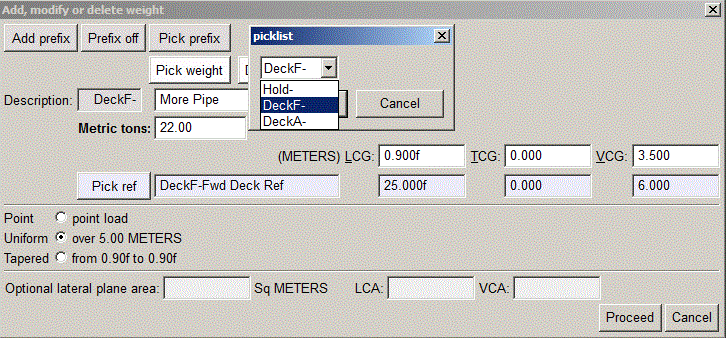

| Another new feature is weight-prefix management: |
|

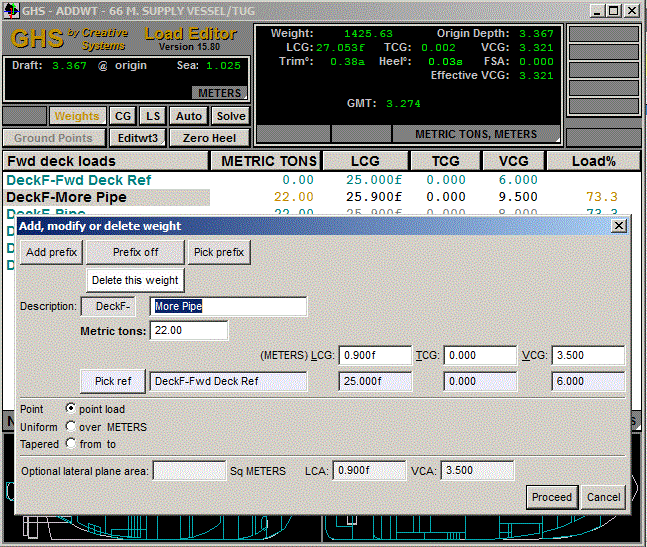

| It can be used by itself or with Load Editor: |
|
|
To use it with the Load Editor, first
RUN Add_Weight3.LIB /CALL
then include macros AddWt3 and EditWt3 in your LOAD EDIT command: LOAD (*) EDIT /MACRO:AddWt3,EditWt3 |
|
We will leave it to you to download the files and explore the other new features.
Download |
|
