Command of the Week
(New or interesting aspects of GHS that you may not know about)

Part 1
(Requires GHS version 15.34 or later Part Maker)

The new RENDER command in Part Maker produces a rendered visualization of the geometry model. The updated SURFACE command can be used to specify surface details such as color and opacity.

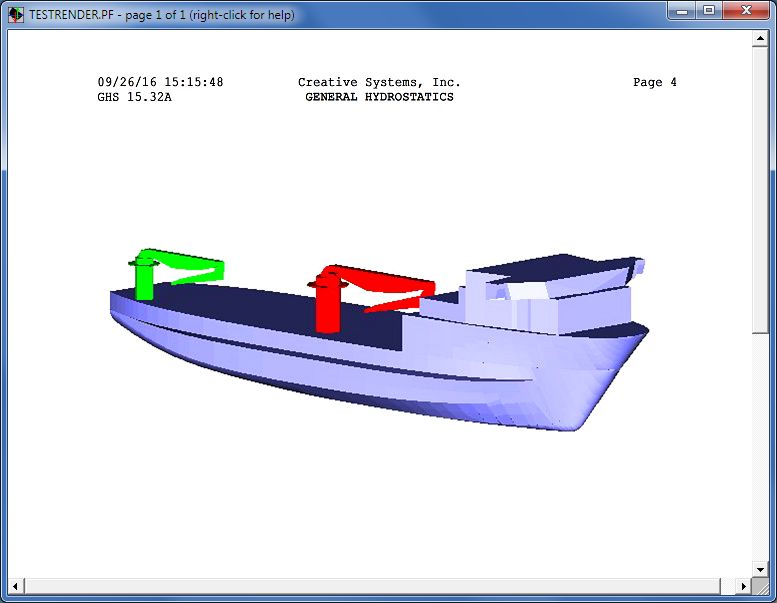

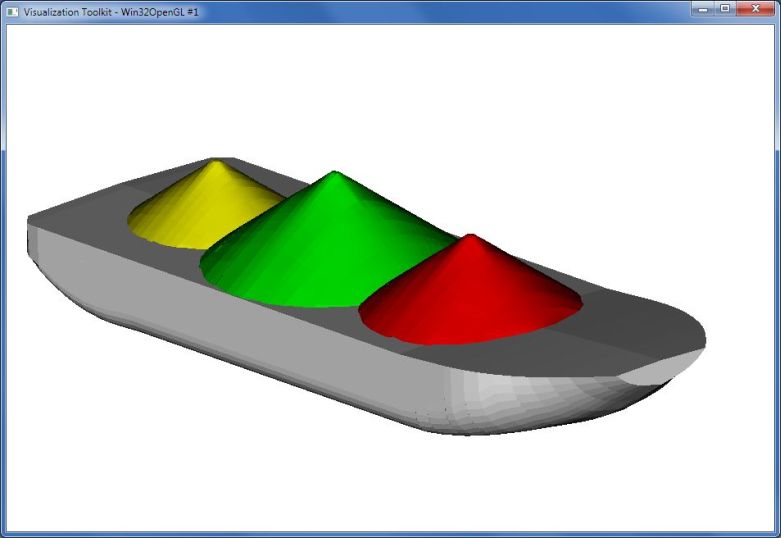

The sample above shows an image that has been placed directly in a GHS report. Alternatively, the geometry can be rendered in an interactive window as shown below. Rotate, pan, and zoom functions allow you to examine the model from any angle.

This is only the beginning. Next week the Render Wizard will be introduced.
