Command of the Week
(New or interesting aspects of GHS that you may not know about)

Part 2
(Requires GHS version 14.50 or later)

Last week STABILITY was shown with some of its built-in criteria. Additionally, you can define the elements of your own criteria.
For example:
Command: STABILITY SETUP This produces the dialog shown below:
Clicking User defined brings in a dialog where you start to define a new criterion, giving it a code and a title:

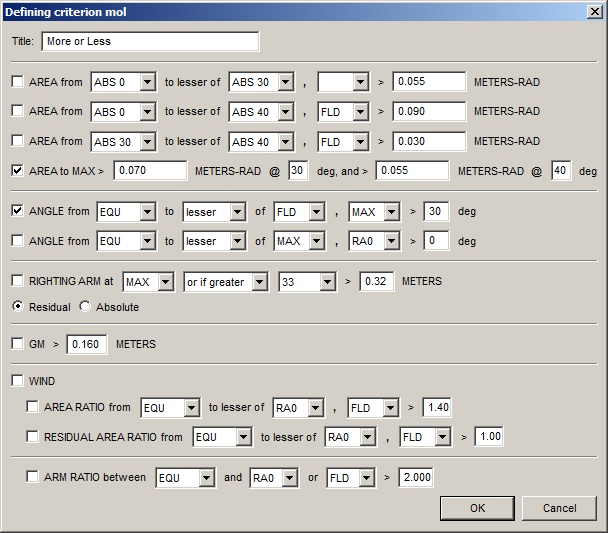

Clicking Ok brings up the working dialog for designing the elements of the criterion:
Click Ok, and see that your new criterion is now available as one of the User-defined choices:
Clicking mol brings up the final dialog box:

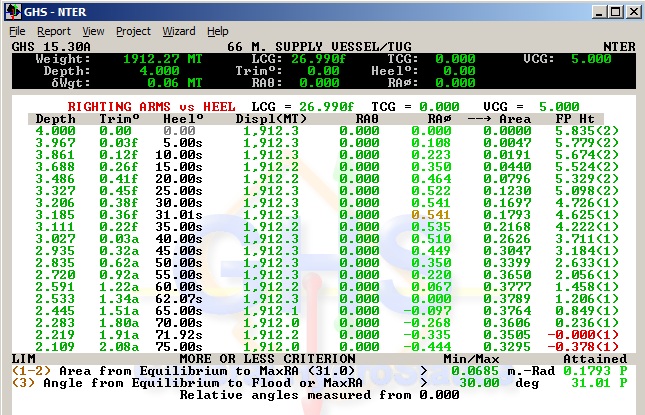

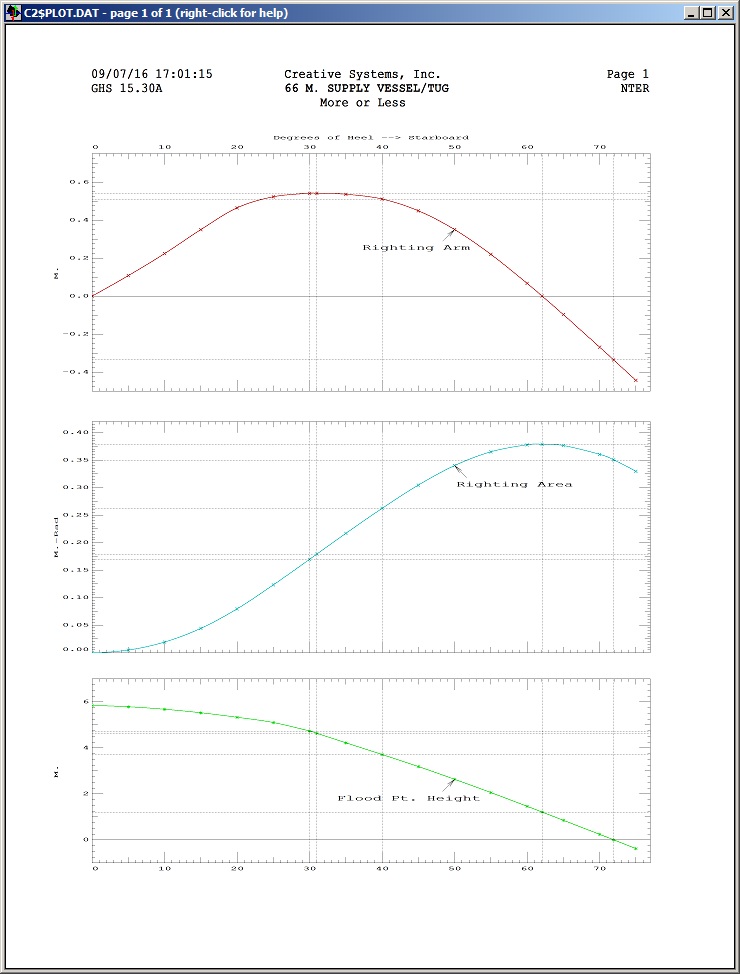

Either get the command for your run file or run the stability immediately.

Note: The STABILITY command requires the Advanced Features module. However, the same stability criteria system can be accessed through the CRITER2 wizard (In the Criteria wizard category) even without the AF module.
